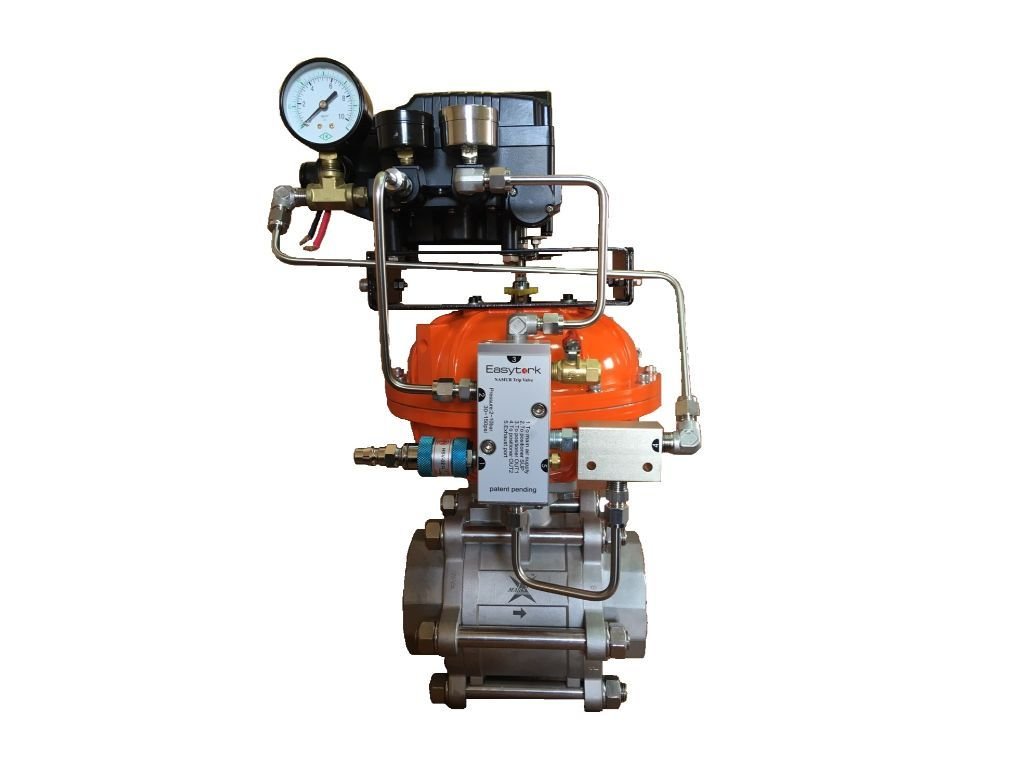

EASYTORK ECA High-Precision Proportional Control Valve
EASYTORKECA
Price: Liên hệ
A pneumatic actuator for control valves that is smaller, lighter, more efficient and more accurate: 1/10 the weight, 1/6 the size and 1/4 the air consumption of spring-and-diaphragm actuators, at equal or better performance.
- Rotary actuator directly coupled to the valve shaft (spring-free).
- Fully PTFE-coated for severe corrosion resistance.
- Operates up to 100 psi; zero static leakage; up to 75% less dynamic emission.
- Compatible with NAMUR positioners.
- Operating pressure: Up to 100 psi
- Weight: 1/10 of spring–diaphragm actuators
- Size: 1/6 of spring–diaphragm actuators
- Air consumption: 1/4 of spring–diaphragm actuators
- Static leakage: Zero
- Manufacturing: ISO 9001:2015
